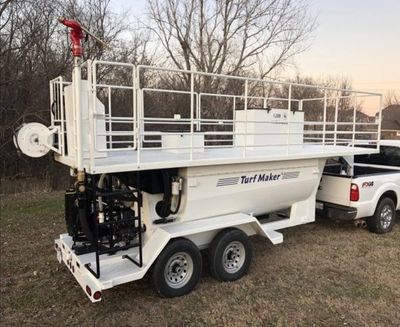

TurfMaker® 1200 Deck & Railing

Compare Capacities of other Large machines

The TurfMaker® 1200 hydroseeder is ideal for Sod Quality Results™ applications. A quality minded contractor can apply wood fiber mulch at heavy rates, along with premium seed, tackifiers, fertilizer, and cover up to 7,500 – 10,000 sq ft. with a tank load. Jobs requiring near perfect results are made with hose applications and usually take about 45 minutes per tank load.

Typical roadside hydro-seeding applications can be made from the tower. One tank load can cover as much as an acre with a thin application of paper mulch. This type of application is not recommended where highly reliable results are required.

PERFORMANCE FEATURES:

User Friendly, High Productivity, Labor Saving
Special Long Life Positive Displacement Pump
Thick Wood Mulch Applications
Long Hoses up to 1,000 Feet
Fewer Clogs – Clear Water Hose Flushing System
Integrated Clear Water Holding Tank
Tower Applications up to 125 Feet
Carrying Deck for Mulch
Optional Trailers (2 – 7,000 lb Axles w/brakes) or (2 – 8,000 lb Axles w/brakes)

Total Capacity – Total Gallons: 1200

Physical Specifications

Empty Weight: (Varies Depending on Options) 5,000 lbs

Weight of Slurry in Tank: 8,300 lbs

Loaded Weight:

(Varies Depending on Options) 13,300 lbs

Typical Length with Most Engines: 151″ – 163″

Skid Frame Width: 47″

Overall Width: 56″

Overall Height: 68″

Standard Engine: Kohler CH1000 (37 hp)

(Other Engines Available)

Standard Pump: Rotary Gear, Positive Displacement
Trailer Option: Double Axle (7,000 or 8,000 lbs axles)

Performance Specifications

Total Pounds of Mulch per Tank Load**

Thick Wood Mulch (BFM) 500 lbs
Blended Wood Mulch 550 lbs
Paper Mulch 600 lbs

Pumping Power – Spraying Distances

Length of Hose: up to 500 ft.

Larger Engine Options: up to 1,000 ft.

(Long distance applications depend on larger engines to get the most distance from the end of the nozzle.)

Distance from the end of the nozzle: Up to 150 spray

** Mulches can be loaded more or less depending upon brand and density.

TurfMaker® 1200

Configuration Includes:

Hydraulic Drive
32 HP Electric Start
Premium Long-Life Pump
Steel Gears
Full Top Deck & Railing
125’ Premium Lay Flat Hose
6 Nozzles
Hose Reel
Clear Water Flush System
Integrated Flush Tank

Popular Options:

Trailer

The Power of TurfMaker®

The TurfMaker® 1200 will mix and pump the thickest mulch slurries or BFM type products up to 500 pounds per tank load, through at least 500 feet of hose with a KOHLER CH1000 37 hp engine.

For greater than 500′ hose applications, use a Yanmar Diesel engine model.

Don't delay, order today 844-449-3767
